Structural support
Carries Two Water-Filled Housings
Designed to support a complete dual-stage slim whole-house assembly rather than allowing the pipework to carry the system weight.

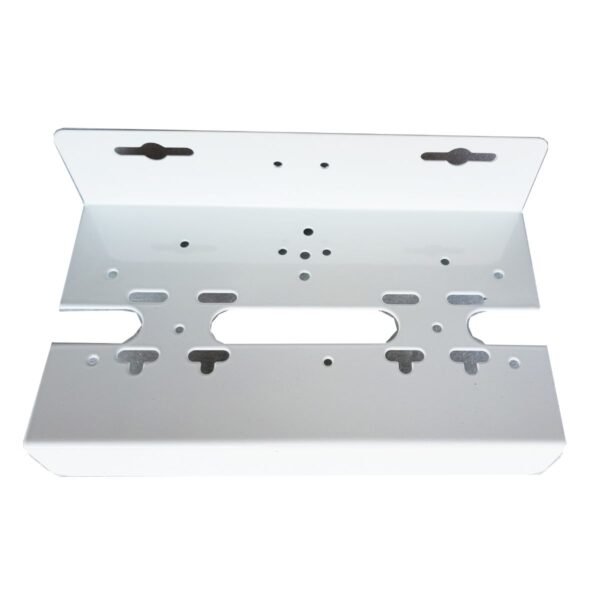

Dual Metal Mounting Bracket for Two-Stage Whole House Water Filter Systems — Slim 10″ × 2.5″ Housings, 3/4″ Ports, SKU: DUALBRACKET
$9.99
- Description
- Additional information
- Reviews (0)
Description
Heavy-duty dual housing support
Metal wall-mount bracket for two slim 10″ × 2.5″ whole-house housings with 3/4″ ports
This heavy-duty steel bracket supports two compatible slim whole-house filter housings in a side-by-side, two-stage configuration. It carries the weight of the water-filled housings, keeps them aligned, and helps reduce stress on inlet, outlet and inter-housing plumbing connections.
2 housingsDual-stage configuration
10″ × 2.5″Slim housing compatibility
3/4″ portsCompatible housing-head size
1.4 lbHeavy-duty metal bracket
What it does
Supports the system so the plumbing does not have to
Two compatible housing heads bolt to the bracket, and the bracket mounts to a wall or solid backing. This keeps the housings parallel and evenly spaced, supports the weight of the filled system, and helps reduce strain on fittings, unions and threaded connections.
Service access
Keeps Housings Aligned
Maintains parallel housing spacing for a cleaner installation and easier cartridge replacement.
Key benefits
Rigid support for a clean, serviceable dual-stage installation
Supports Two Housings
Designed for a compatible dual-stage system using two slim 10″ × 2.5″ housings.
Heavy-Duty Metal Construction
Built to support the weight of two properly mounted, water-filled filter housings.
Keeps Housings Aligned
Maintains parallel and evenly spaced housings for easier filter changes.
Reduces Plumbing Stress
Helps take load off inlet, outlet, unions and inter-housing fittings.
Pre-Drilled for Wall Mounting
Includes mounting holes for installation on suitable solid backing.
Clean Professional Layout
Suitable for residential and light-commercial utility-room installations.
What is included
One dual metal mounting bracket
- ✓One heavy-duty dual metal bracket
- ✓Pre-drilled openings for two compatible slim housing heads
- ✓Wall-mounting hardware, housing-head bolts, filter housings, cartridges, nipples, valves and plumbing fittings are not included
Specifications
Confirmed bracket dimensions and compatibility
| Product type | Dual metal wall-mount bracket |
|---|---|
| Housings supported | 2 |
| Housing size | Slim 10″ × 2.5″ |
| Port-size compatibility | 3/4″ housing heads |
| Material | Heavy-duty metal / steel |
| Dimensions | Approximately 11 × 4 × 2 in |
| Weight | Approximately 1.4 lb |
| Mounting hardware | Not included |
| Brand | MyAquaFilter / MyWaterClub |
| SKU | DUALBRACKET |
Installation guidance
- ✓Mount into a wall stud, masonry or other solid backing whenever possible
- ✓Choose screws and anchors suitable for the wall material and full installed weight
- ✓Allow approximately 12″ of clearance below the housings for sump removal
- ✓Support inlet and outlet plumbing independently so pipe weight is not transferred to the housings
- ✓Confirm housing-head bolt alignment before tightening
- ✓Professional installation is recommended when modifying the main water line
Compatibility
Made for MyAquaFilter and MyWaterClub dual-stage slim whole-house systems
BH
MWC-DUAL-BH34
Compatible with the two-stage blue slim-housing whole-house system using 3/4″ ports.
CH
MWC-DUAL-CH34
Compatible with the two-stage clear slim-housing whole-house system using 3/4″ ports.
1Y
MWC-DUALWHS
Compatible with the two-stage whole-house system supplied with a one-year filter set.
STD
Other Compatible Slim Housings
May fit other standard slim 10″ housing heads with 3/4″ ports when the bolt pattern and spacing match.
Before purchase
Good to know
!
Not for Big Blue housings
This bracket does not fit 10″ × 4.5″ or 20″ × 4.5″ Big Blue housing heads.
This bracket does not fit 10″ × 4.5″ or 20″ × 4.5″ Big Blue housing heads.
!
Not for 1″ port housings
It is designed for compatible slim housing heads with 3/4″ ports.
It is designed for compatible slim housing heads with 3/4″ ports.
!
Not for triple-stage systems
A three-stage system requires a separate triple-slot bracket.
A three-stage system requires a separate triple-slot bracket.
!
Mounting hardware is not included
Select screws and anchors based on the wall type and total water-filled system weight.
Select screws and anchors based on the wall type and total water-filled system weight.
!
Plan for 15–20 lb installed weight
Two water-filled slim housings can be much heavier than the bracket alone.
Two water-filled slim housings can be much heavier than the bracket alone.
!
Leave service clearance
Allow enough room below the housings to drop the sumps during filter replacement.
Allow enough room below the housings to drop the sumps during filter replacement.
This product includes one metal bracket only. Housing heads, sumps, cartridges, mounting screws, anchors, housing-head bolts, nipples, valves and plumbing fittings are not included. Compatibility with non-MyAquaFilter housings requires verification of the bolt pattern, port size and housing spacing.
Not sure whether BR-2-SLIM fits your filter system?
Send the system model, housing-head photos and bolt-hole measurements before ordering.
Send the system model, housing-head photos and bolt-hole measurements before ordering.
Additional information
| Weight | 18 oz |
|---|---|
| Dimensions | 10 × 8 × 3 in |
