Name: Triple Metal Mounting Bracket for 3-Stage Whole House Water Filter Systems — Slim 10″ × 2.5″ Housings, 3/4″ Ports, SKU: BR-3-SLIM - MyAquaFilter®
SKU: BR-3-SLIM
Price: 18.99 USD
Availability: InStock

Triple Metal Mounting Bracket for 3-Stage Whole House Water Filter Systems — Slim 10″ × 2.5″ Housings, 3/4″ Ports, SKU: BR-3-SLIM

0 out of 5

( There are no reviews yet. )

$18.99

Triple Metal Bracket for Triple Stage Whole House Filtration Systems

Description
Additional information
Reviews (0)

Description

Heavy-duty triple housing support

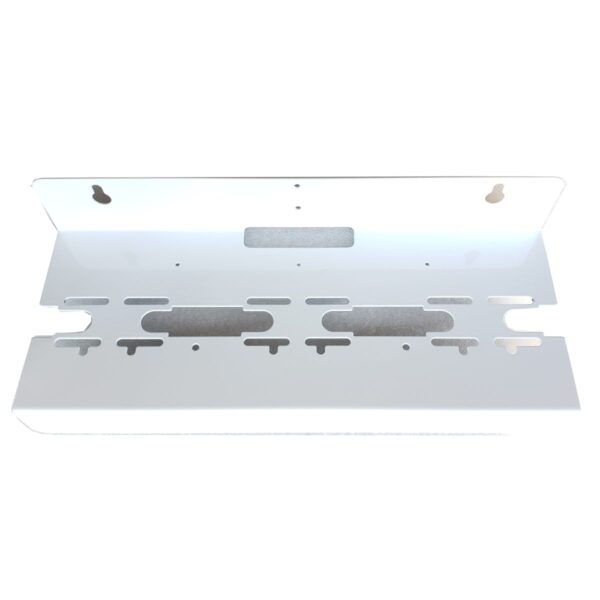

Metal wall-mount bracket for three slim 10″ × 2.5″ whole-house housings with 3/4″ ports

This heavy-duty metal bracket supports three compatible slim whole-house filter housings in a side-by-side, three-stage configuration. It carries the weight of the water-filled housings, keeps them aligned, and helps reduce stress on inlet, outlet and inter-housing plumbing connections.

3 housingsTriple-stage configuration

10″ × 2.5″Slim housing compatibility

3/4″ portsCompatible housing-head size

3 lbHeavy-duty metal bracket

What it does

Supports the complete three-stage system so the plumbing does not have to

Three compatible housing heads bolt to the bracket, and the bracket mounts to a wall or solid backing. This keeps the housings parallel and evenly spaced, supports the full installed weight, and helps reduce strain on fittings, unions and threaded connections.

Structural support

Carries Three Water-Filled Housings

Designed to support a complete triple-stage slim whole-house assembly rather than allowing the pipework to carry the system weight.

Service access

Keeps Housings Aligned

Maintains parallel and evenly spaced housings for a cleaner installation and easier cartridge replacement.

Key benefits

Rigid support for a professional three-stage installation

Supports Three Housings
Designed for compatible three-stage systems using three slim 10″ × 2.5″ housings.

Heavy-Duty Metal Construction
Built to support three properly mounted, water-filled housing assemblies.

Keeps Housings Aligned
Maintains parallel and even spacing for easier cartridge changes.

Reduces Plumbing Stress
Helps take load off inlet, outlet, inter-housing fittings and unions.

Pre-Drilled for Wall Mounting
Includes mounting holes for installation on suitable solid backing.

PRO

Clean Professional Layout
Suitable for residential and light-commercial utility-room installations.

What is included

One triple metal mounting bracket

✓One heavy-duty triple metal bracket
✓Pre-drilled openings for three compatible slim housing heads
✓Wall-mounting screws, anchors, housing-head bolts, filter housings, cartridges, nipples, valves and plumbing fittings are not included

Specifications

Confirmed bracket dimensions and compatibility

Product type	Triple metal wall-mount bracket
Housings supported	3
Housing size	Slim 10″ × 2.5″
Port-size compatibility	3/4″ housing heads
Material	Heavy-duty metal / steel
Dimensions	Approximately 14 × 6 × 3 in
Weight	Approximately 3 lb
Mounting hardware	Not included
Brand	MyAquaFilter / MyWaterClub
SKU	BR-3-SLIM; page metadata also lists BRACKET-MET-3-SLIM-34

Installation guidance

✓Mount into a wall stud, masonry or other solid backing whenever possible
✓Choose screws and anchors suitable for the wall material and full installed weight
✓Allow approximately 12″ of clearance below the housings for sump removal
✓Support inlet and outlet plumbing independently so pipe weight is not transferred to the housings
✓Confirm housing-head bolt alignment before tightening
✓Professional installation is recommended when modifying the main water line

Compatibility

Made for MyAquaFilter triple-stage slim whole-house systems

CLR

WHS34SET

Compatible with the three-stage clear slim-housing whole-house system using 3/4″ ports.

BLU

MWC-WHS34B2

Compatible with the three-stage blue premium slim-housing system using 3/4″ ports.

VAL

WHF-34V2

Compatible with the three-stage blue slim-housing system supplied with valves.

STD

Other Compatible Slim Housings

May fit other standard slim 10″ housing heads with 3/4″ ports when the bolt pattern and spacing match.

Before purchase

Good to know

Not for Big Blue housings
This bracket does not fit 10″ × 4.5″ or 20″ × 4.5″ Big Blue housing heads.

Not for 1″ port housings
It is designed for compatible slim housing heads with 3/4″ ports.

Not for dual- or single-stage systems
Use a dual or single bracket when the filtration assembly contains fewer than three housings.

Mounting hardware is not included
Select screws and anchors based on the wall type and total water-filled system weight.

Plan for 20–25 lb installed weight
Three water-filled slim housings can be substantially heavier than the bracket alone.

Leave service clearance
Allow about 12″ below the housings so the sumps can be removed during filter replacement.

This product includes one metal bracket only. Housing heads, sumps, cartridges, mounting screws, anchors, housing-head bolts, nipples, valves and plumbing fittings are not included. Compatibility with non-MyAquaFilter housings requires verification of the bolt pattern, port size and housing spacing.

Not sure whether this triple bracket fits your filter system?
Send the system model, housing-head photos, port size and bolt-hole measurements before ordering.

Ask a Water Filter Specialist
