Name: Plastic Union Nipple Connector, 3/4″ MNPT × 3/4″ MNPT — Male-to-Male with O-Ring Seal, SKU: FT-UN-34B-R - MyAquaFilter®
SKU: FT-UN-34B-R
Price: 1.99 USD
Availability: InStock

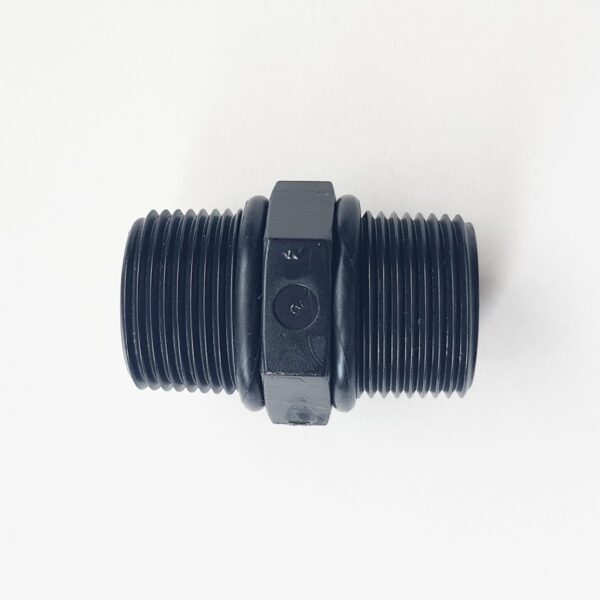

Plastic PVC Union Nipple Connector – 3/4″ MNPT × 3/4″ MNPT with O-Ring

Plastic Union Nipple Connector, 3/4″ MNPT × 3/4″ MNPT — Male-to-Male with O-Ring Seal, SKU: FT-UN-34B-R

0 out of 5

( There are no reviews yet. )

$1.99

Nipple 3/4″ x 3/4″ (between housing), black

Description
Additional information
Reviews (0)

Description

Between-housing connector

3/4″ male-to-male plastic union nipple with O-ring seal

This short plastic union nipple connects two compatible 3/4″ female NPT ports, such as adjacent whole-house filter housing heads. The integrated O-ring provides a face seal that helps create a leak-resistant connection with light hand tightening.

3/4″ MNPTMale thread on both ends

O-ring sealDesigned for light tightening

Plastic bodyCorrosion-resistant construction

90 PSIMaximum listed pressure

What it does

Joins compatible filter housings without a long pipe connection

The nipple threads into two facing 3/4″ female NPT ports to create a compact housing-to-housing connection. It is commonly used between stages in dual- and triple-stage whole-house filtration systems.

Thread connection

3/4″ MNPT × 3/4″ MNPT

Male threads on both ends connect compatible housing heads, tees, valves or inline components with 3/4″ female NPT ports.

Sealing method

Integrated O-Ring Seal

The O-ring seals against the mating face, helping reduce the need for heavy thread tape or excessive torque.

Key benefits

Compact, corrosion-resistant connection for multi-stage systems

3/4

Male-to-Male Connection
Connects two compatible 3/4″ female NPT ports.

O-Ring Face Seal
Helps provide a leak-resistant connection with light hand tightening.

Corrosion-Resistant Plastic
Will not rust like steel and is intended for residential cold-water filtration.

Multi-Stage System Use
Commonly installed between adjacent housings in dual- and triple-stage systems.

Hand-Tight Installation
Designed to seal without heavy wrench torque when the O-ring is clean and correctly seated.

Made in Taiwan
Manufactured in Taiwan for MyAquaFilter and MyWaterClub systems.

Quantity planning

Order one connector for each housing-to-housing joint

Single-Stage System

No between-housing nipple is normally required unless connecting the housing to another compatible component.

Dual-Stage System

One nipple is normally used between two adjacent housing heads.

Triple-Stage System

Two nipples are normally used to connect three housing heads in sequence.

Service Spare

Keeping one extra connector and O-ring available can simplify future system maintenance.

Specifications

Thread, material and operating limits

Product type	Union nipple connector
Thread size	3/4″ MNPT × 3/4″ MNPT
Connector style	Male × male
Seal	Integrated O-ring face seal
Material	Corrosion-resistant plastic
Application	Residential cold-water filtration systems
Maximum pressure	90 PSI
Quantity included	1 connector
Country of origin	Taiwan
Brand	MyAquaFilter / MyWaterClub
SKU	FT-UN-34B-R
Listed dimensions	Approximately 2″ long; source pages list 2 × 1 × 1 in and 2 × 2 × 1 in
Listed weight	Source pages list 2 oz and 0.2 lb

Installation guidance

✓Shut off the water and relieve system pressure before installation
✓Inspect the O-ring for cuts, flattening, twisting or debris
✓Align both components carefully so the threads start straight
✓Hand-tighten firmly, then add no more than approximately 1/4 turn if needed
✓Pressurize slowly and inspect the connection for leakage
✓Replace the O-ring or connector if damaged rather than applying excessive torque

Compatibility

For compatible 3/4″ female NPT filtration ports

Works With
MyAquaFilter and MyWaterClub whole-house housings with compatible 3/4″ female NPT ports, plus other standard-thread filter housings and components when face spacing and O-ring seating match.

Not Compatible With
1″ or 1/2″ threaded ports, push-to-connect fittings, incompatible thread standards, hot-water lines, or high-pressure industrial applications.

Often used with

Common related parts for slim whole-house systems

3/4″ Shutoff Ball Valve

Add isolation valves around the filtration system to simplify cartridge changes and service.

View 3/4″ ball valve →

CLR

Clear 3/4″ Housing

Compatible slim replacement housing for standard 10″ × 2.5″ cartridges.

View clear housing →

BLU

Solid-Blue 3/4″ Housing

Compatible opaque slim replacement housing for standard 10″ × 2.5″ cartridges.

View solid-blue housing →

Dual Metal Bracket

Supports two compatible slim housing heads in a dual-stage installation.

View dual bracket →

Before purchase

Good to know

Confirm 3/4″ female NPT ports
The connector will not fit 1″, 1/2″ or non-NPT threaded ports.

Hand-tighten only
Heavy wrench torque can crack the plastic body, deform the O-ring or damage housing-head threads.

Thread tape is usually unnecessary
The O-ring is intended to create the primary seal. Excessive tape may prevent correct face seating.

Inspect the O-ring during service
Replace it if it becomes cut, flattened, stretched, twisted or permanently compressed.

Cold-water residential use
Do not use on hot-water lines or industrial systems that exceed the listed pressure limit.

Face alignment matters
Matching thread size alone does not guarantee that the O-ring will seat correctly against every third-party component.

This product includes one plastic union nipple connector. Filter housings, replacement O-rings, valves, brackets and other plumbing components are not included. Verify thread size, mating-face geometry, pressure rating and component alignment before installation.

Not sure whether FT-UN-34B-R fits your system?
Send photos of both ports, the housing model numbers and the measured thread size before ordering.

Ask a Water Filter Specialist
