Thread connection
1″ MNPT × 1″ MNPT
Male threads on both ends connect compatible Big Blue housing heads, tees or inline filtration components with 1″ female NPT ports.

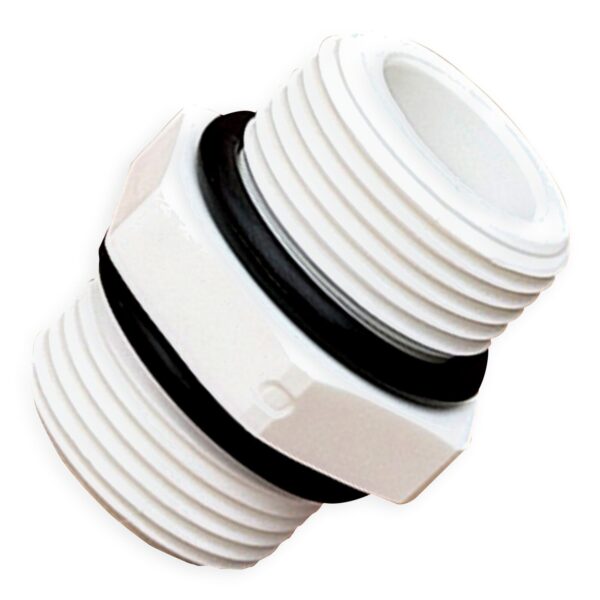

1″ MNPT × 1″ MNPT Union Nipple Connector for Big Blue Filter Housings — Double O-Ring Seal, 120 PSI, — SKU: FT-UN-1W-R
$2.29
- Description
- Additional information
- Reviews (0)
Description
Big Blue housing connector
1″ male-to-male NPT union nipple with double O-ring seal
This polypropylene connector joins two compatible 1″ female NPT ports, such as adjacent Big Blue whole-house filter housing heads or a housing and an inline filtration component. Two integrated O-rings create face seals that help provide a secure, leak-resistant connection without relying on thread tape.
1″ MNPT × 2Male thread on both ends
Double O-ringTwo sealing surfaces
PolypropyleneCorrosion-resistant body
120 PSIMaximum listed pressure
What it does
Connects compatible Big Blue housings in a compact multi-stage assembly
The nipple threads into two facing 1″ female NPT ports. As the components are brought together, the two O-rings seat against the mating faces to create the primary seal.
Sealing method
Double O-Ring Face Seal
Two O-rings provide two sealing surfaces and help reduce the need for heavy torque or PTFE thread tape.
Key benefits
Compact, corrosion-resistant connection for Big Blue systems
Male-to-Male Connection
Connects two compatible 1″ female NPT filtration ports.
Double O-Ring Seal
Two sealing surfaces provide additional protection against leakage.
High-Strength Polypropylene
Corrosion-resistant construction will not rust or seize like some metal fittings.
Big Blue Compatibility
Designed for compatible 10″ × 4.5″ and 20″ × 4.5″ Big Blue housings.
Multi-Stage System Use
Commonly used between housings in dual- and triple-stage whole-house systems.
Light-Torque Installation
Designed for even hand tightening rather than heavy wrench force.
Quantity planning
Order one connector for each housing-to-housing joint
1
Single-Stage System
No between-housing nipple is normally required unless the housing connects directly to another compatible component.
2
Dual-Stage System
One nipple is normally used between two adjacent Big Blue housing heads.
3
Triple-Stage System
Two nipples are normally used to connect three Big Blue housing heads in sequence.
SP
Service Spare
Keeping one extra connector and O-ring set on hand can simplify future maintenance.
Specifications
Thread, material and operating details
| Product type | Male-to-male union nipple connector |
|---|---|
| Thread size | 1″ MNPT × 1″ MNPT |
| Connector style | Male × male |
| Seal | Double O-ring face seal |
| Material | High-strength polypropylene |
| Color | White |
| Maximum pressure | 120 PSI |
| Application | Cold-water residential filtration and Big Blue whole-house systems |
| Housing compatibility | Compatible 10″ × 4.5″ and 20″ × 4.5″ Big Blue housings with suitable 1″ female NPT ports |
| Quantity included | 1 connector with 2 O-rings |
| Brand | MyAquaFilter / MyWaterClub |
| SKU | FT-UN-1W-R |
| Listed dimensions | Specification table: 2 × 2 × 2 in; additional information: 2 × 1 × 1 in |
| Listed weight | MyAquaFilter: 2 oz; MyWaterClub specification: 0.1 lb; additional information: 0.2 lb |
Installation guidance
- ✓Shut off the water supply and relieve all system pressure before installation
- ✓Confirm that both O-rings are present, clean and seated correctly in their grooves
- ✓Align both components so the threads start straight and the sealing faces meet evenly
- ✓Hand-tighten evenly, then add only about 1/4 turn if needed to seat the O-rings
- ✓Do not use a wrench or apply heavy torque to the plastic connector
- ✓Pressurize slowly and inspect the joint for leakage
Compatibility
For compatible 1″ female NPT Big Blue filtration ports
Compatible 10″ and 20″ Big Blue housing heads, single-, dual- and triple-stage systems, and inline components using suitable 1″ female NPT ports and matching O-ring sealing faces.
Slim 10″ × 2.5″ housings, 3/4″ or 1/2″ ports, push-connect fittings, hot-water lines or industrial applications.
Often used with
Common related Big Blue components
HSG
10″ Big Blue Housing
Compatible 10″ × 4.5″ housing with 1″ brass-reinforced ports and pressure release.
BR2
Dual Big Blue Bracket
Supports two compatible Big Blue housing heads in a two-stage installation.
BR3
Triple Big Blue Bracket
Supports three compatible Big Blue housing heads in a three-stage installation.
3/4
Slim 3/4″ Version
Use the smaller 3/4″ male-to-male connector for compatible slim whole-house housings.
Before purchase
Good to know
!
Confirm 1″ female NPT ports
The connector will not fit 3/4″, 1/2″ or non-NPT threaded ports.
The connector will not fit 3/4″, 1/2″ or non-NPT threaded ports.
!
Do not use a wrench
Heavy torque can crack the polypropylene body, distort the O-rings or damage housing threads.
Heavy torque can crack the polypropylene body, distort the O-rings or damage housing threads.
!
PTFE tape is not required
When both O-rings are present and seated correctly, tape may interfere with the sealing faces.
When both O-rings are present and seated correctly, tape may interfere with the sealing faces.
!
Inspect both O-rings
Replace any ring that is cut, flattened, twisted, stretched or permanently compressed.
Replace any ring that is cut, flattened, twisted, stretched or permanently compressed.
!
Cold-water residential use
Do not install on hot-water lines or in industrial systems beyond the listed pressure rating.
Do not install on hot-water lines or in industrial systems beyond the listed pressure rating.
!
Mating-face geometry matters
Matching thread size alone does not guarantee that both O-rings will seat correctly against every third-party component.
Matching thread size alone does not guarantee that both O-rings will seat correctly against every third-party component.
This product includes one polypropylene union nipple and two O-rings. Filter housings, replacement O-rings, brackets, valves and other plumbing components are not included. Verify thread size, mating-face design, pressure rating and component alignment before installation.
Not sure whether FT-UN-1W-R fits your Big Blue system?
Send photos of both ports, the housing model numbers and the measured thread size before ordering.
Send photos of both ports, the housing model numbers and the measured thread size before ordering.
Additional information
| Weight | 2 oz |
|---|---|
| Dimensions | 2 × 2 × 1 in |
