Primary purpose
Fluoride Reduction
Helps reduce dissolved fluoride through adsorption and ion-exchange interactions with the mineral portion of the bone-char media.

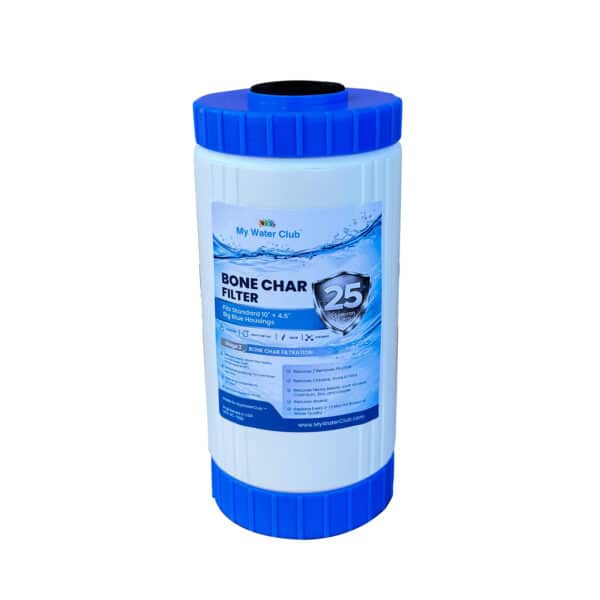

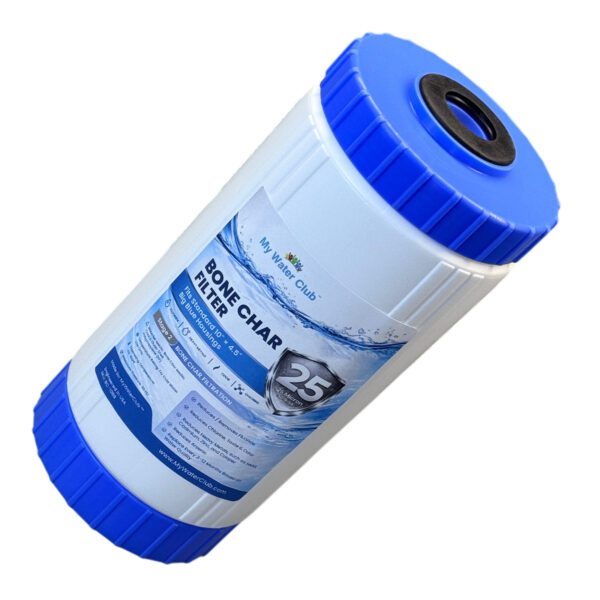

10″ x 4.5″ Bone Char Filter – Reduces Fluoride & Heavy Metals, Big Blue Whole House Replacement, SKU: BC-10BB
$65.00
- Description
- Additional information
- Reviews (0)
Description
Specialty fluoride-reduction media
High-capacity bone-char cartridge for compatible 10″ × 4.5″ Big Blue systems
This specialty whole-house cartridge uses bone-char media to help adsorb fluoride and selected dissolved metals that standard sediment and carbon filters may not effectively address. It is intended as one stage in a properly designed multi-stage filtration system.
Bone charMineral-based adsorption media
10″ × 4.5″Big Blue cartridge format
5–10 GPMListed system-dependent flow
6–12 monthsTypical service range
How bone char works
Hydroxyapatite-rich media provides targeted adsorption
Bone char contains calcium-phosphate minerals, including hydroxyapatite, together with a carbon fraction. These mineral surfaces can adsorb fluoride and may also bind selected dissolved metals under suitable water conditions.
Secondary purpose
Selected Heavy-Metal Adsorption
May help reduce selected dissolved metals, but actual performance depends strongly on the metal species, concentration, pH, competing ions, flow rate and contact time.
Key benefits
Specialty treatment beyond standard sediment and carbon filtration
Helps Reduce Fluoride
Bone-char media is widely studied for adsorption of dissolved fluoride from water.
Selected Metal Adsorption
May help reduce certain dissolved metals under suitable water chemistry and contact conditions.
Mineral-Based Media
Uses hydroxyapatite-rich bone char rather than conventional activated carbon alone.
Big Blue Capacity
The 10″ × 4.5″ format provides more media and contact capacity than a slim cartridge.
Multi-Stage Compatible
Designed for use after sediment and, where appropriate, carbon prefiltration.
Drop-In Replacement
Fits compatible industry-standard 10″ × 4.5″ Big Blue housings.
Treatment guide
What this cartridge may help reduce
Bone-char performance is highly water-specific. Laboratory or field testing of the installed system is recommended when reduction of a health-related contaminant is the treatment goal.
Helps reduce or adsorb
Fluoride
Selected dissolved metals
Selected inorganic contaminants
Selected dissolved metals
Selected inorganic contaminants
No specific percentage, gallon capacity or final concentration is claimed because the current product page does not provide cartridge-level performance testing.
Does not replace other treatment stages
Sediment filtration
Chlorine treatment
Chloramine treatment
Hardness removal
Iron and sulfur systems
Microbiological disinfection
Broad TDS reduction
Chlorine treatment
Chloramine treatment
Hardness removal
Iron and sulfur systems
Microbiological disinfection
Broad TDS reduction
Use appropriate sediment, carbon, softening, iron-treatment, disinfection or reverse-osmosis equipment when those goals are required.
Specifications
Media, size and service guidance
| Product type | Specialty bone-char adsorption cartridge |
|---|---|
| Primary treatment goal | Fluoride reduction |
| Secondary treatment goal | Adsorption of selected dissolved metals |
| Filter media | Bone char |
| Nominal size | 10″ × 4.5″ Big Blue |
| Micron rating | Not stated on the current product page |
| Listed flow rate | Approximately 5–10 GPM, depending on system design and operating conditions |
| Typical service life | Approximately 6–12 months; actual life depends on contaminant load, flow and water use |
| Recommended position | After sediment prefiltration; additional upstream carbon treatment may be appropriate |
| Housing compatibility | Compatible standard 10″ × 4.5″ Big Blue housings |
| SKU | BC-10BB |
| Listed shipping dimensions | 10 × 6 × 6 in |
Installation and monitoring
- ✓Confirm the housing accepts a standard 10″ × 4.5″ Big Blue cartridge
- ✓Install sediment filtration upstream to prevent premature media fouling
- ✓Follow the flow direction and stage order of the complete filtration system
- ✓Pressurize slowly and inspect the housing for leaks after replacement
- ✓Flush the cartridge thoroughly before normal use
- ✓Test treated water periodically when fluoride or metal reduction is the primary goal
Recommended system placement
Use bone char as one stage in a complete treatment sequence
1
Sediment Prefiltration
Install first to capture dirt, sand, silt and visible rust particles that could foul the bone-char media.
2
Carbon Pretreatment
Carbon treatment may be installed upstream when chlorine, chloramine, taste or odor are also concerns.
3
BC-10BB Bone Char
Use as the specialty adsorption stage for fluoride and selected dissolved-metal concerns.
TEST
Post-Treatment Testing
Verify treated-water fluoride or metal levels rather than relying only on elapsed service time.
Before purchase
Good to know
!
Testing is strongly recommended
Fluoride and heavy metals cannot be reliably evaluated by taste, odor or cartridge appearance.
Fluoride and heavy metals cannot be reliably evaluated by taste, odor or cartridge appearance.
!
Performance depends on water chemistry
pH, competing minerals, contaminant concentration, flow rate and contact time can significantly change adsorption capacity.
pH, competing minerals, contaminant concentration, flow rate and contact time can significantly change adsorption capacity.
!
No universal gallon capacity
The current product information does not provide a tested fluoride capacity or guaranteed final concentration.
The current product information does not provide a tested fluoride capacity or guaranteed final concentration.
!
Animal-derived filtration media
Bone char is made from processed animal bone and may not be suitable for customers who avoid animal-derived materials.
Bone char is made from processed animal bone and may not be suitable for customers who avoid animal-derived materials.
!
This is not a disinfectant
The cartridge does not make microbiologically unsafe or unknown-quality water safe to drink.
The cartridge does not make microbiologically unsafe or unknown-quality water safe to drink.
!
Confirm Big Blue size
This cartridge fits 10″ × 4.5″ Big Blue housings and does not fit standard 10″ × 2.5″ slim housings.
This cartridge fits 10″ × 4.5″ Big Blue housings and does not fit standard 10″ × 2.5″ slim housings.
This product includes one replacement cartridge only. Filter housing, wrench, mounting hardware, plumbing fittings and additional filters are not included. Reduction performance is not guaranteed without water-specific testing, correct system sizing and appropriate cartridge replacement.
Not sure whether bone char is appropriate for your water?
Send your source-water report, fluoride level, relevant metal results, ZIP code and current filtration-system details.
Send your source-water report, fluoride level, relevant metal results, ZIP code and current filtration-system details.
Additional information
| Weight | 2 oz |
|---|---|
| Dimensions | 10 × 6 × 6 in |
