Price range: $34.95 through $38.95

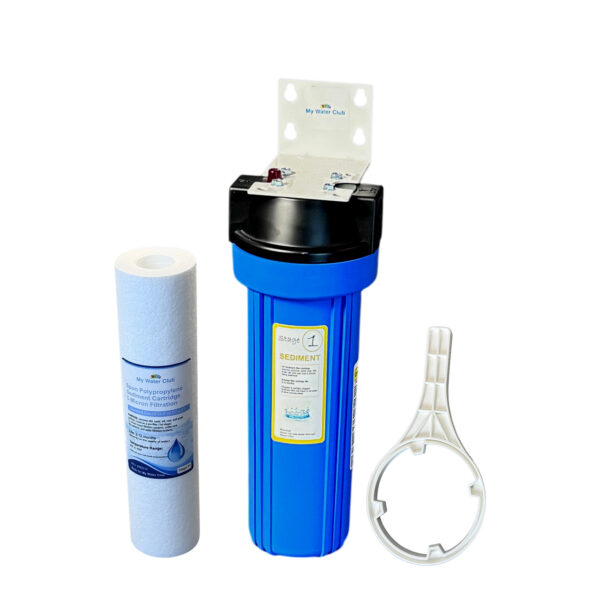

This point-of-entry system installs on the home’s main cold-water line and accepts standard 10″ × 2.5″ slim cartridges. Select an empty housing kit for use with your preferred media, or choose the ready-to-install configuration with a 5-micron sediment cartridge.
Both options include the housing, wall-mount bracket, mounting screws and housing wrench. Only the sediment-system option includes a filter cartridge.
Includes a spun-polypropylene sediment cartridge matched to the housing. This option is ready for installation and helps capture dirt, sand, silt, visible rust flakes and other suspended particles.
Suggested SKU: WHS-1S-1025
Includes the housing, bracket, screws and wrench, but no cartridge. Choose this option when installing your own compatible sediment, carbon or specialty-media cartridge.
Suggested SKU: WHS-1H-1025
With the included sediment-filter option, the system provides a first line of protection for household plumbing, fixtures, appliances and downstream treatment equipment.
Whole-home placement
Installs on the main cold-water line before water is distributed to connected fixtures and appliances.
5-micron sediment option
The complete-system configuration includes a spun-polypropylene cartridge for suspended-particle filtration.
Standard cartridge size
Accepts widely available 10″ × 2.5″ slim cartridges for straightforward replacement and media changes.
Pressure-release button
The housing cap includes a pressure-relief button to simplify depressurizing before cartridge service.
Useful prefilter
Helps protect softeners, reverse-osmosis systems, water heaters and additional filtration stages from sediment.
Service wrench included
The supplied housing wrench assists with opening the sump during routine cartridge replacement.
The housing-only configuration does not filter water until a compatible cartridge is installed.
Actual reduction and cartridge life depend on source-water quality, sediment load, pressure, flow rate, household use and filter condition.
For chlorine-related taste or odor, install a compatible carbon cartridge or add a separate carbon-filtration stage. Select specialty treatment based on a water test.
| Application | Single-stage point-of-entry whole-house cold-water filtration |
|---|---|
| Number of stages | 1 |
| Housing / cartridge size | Standard 10″ × 2.5″ slim cartridge |
| Inlet / outlet | 3/4″ NPT threaded ports |
| Housing style | Blue slim sump with pressure-release button |
| Included cartridge | 5-micron spun-polypropylene sediment filter with WHS-1S-1025 option; no cartridge with WHS-1H-1025 |
| Operating temperature | 40–100°F; cold water only |
| Typical cartridge life | Approximately 3–12 months; replace sooner with heavy sediment, reduced pressure or visible loading |
| Mounting | Wall-mount bracket and screws included |
| Filter compatibility | Standard 10″ × 2.5″ slim cartridges |
| Suggested SKUs | WHS-1S-1025 with sediment filter / WHS-1H-1025 housing only |
The housing accepts standard 10″ × 2.5″ slim cartridges, allowing the filtration media to be changed as water-treatment needs evolve.
10″ × 2.5″ Sediment Cartridges
Replacement melt-blown or pleated cartridges for suspended dirt, sand, silt and visible rust particles.
Compatible Carbon Cartridges
Use an appropriately sized carbon cartridge when chlorine-related taste and odor reduction is required.
Slim Housing Wrench
Replacement service wrench for compatible standard 10″ × 2.5″ slim whole-house housings.
3/4″ Housing O-Ring
Replacement gasket for compatible MyAquaFilter slim whole-house filter housings.
| Weight | 48 oz |
|---|---|
| Dimensions | 14 × 6 × 6 in |
| Choose an option: | Housing and bracket only, Housing, Bracket and Sediment Filter |
