Primary purpose
5-Micron Sediment Filtration
Helps capture dirt, sand, silt, visible rust particles, suspended scale debris and other visible solids from incoming cold water.

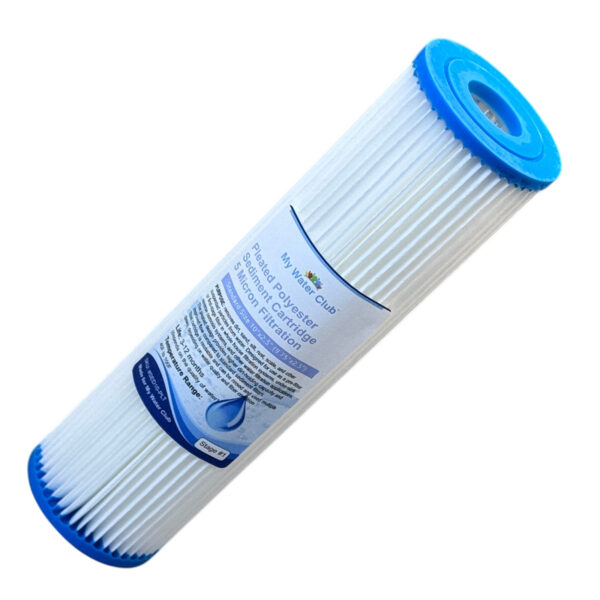

5-Micron Reusable Pleated Sediment Water Filter Cartridge, 10″ × 2.5″ — High-Capacity Well Water Prefilter, SKU: SED5-PLT
$8.00
- Description
- Additional information
- Reviews (0)
Description
High-capacity pleated sediment filtration
Reusable 5-micron pleated cartridge for well water and heavier sediment
This standard 10″ × 2.5″ pleated polypropylene cartridge provides more surface area than a conventional spun sediment filter. It is designed as a first-stage prefilter for compatible whole-house, under-sink and reverse-osmosis systems where sediment loading is moderate to heavy.
5 micronNominal filtration rating
10″ × 2.5″Standard slim format
Up to 8 GPMListed cartridge flow
ReusableRinse and reinstall a few times
What it does
Captures suspended particles while helping maintain flow
The accordion-folded media exposes more filtration surface than a standard spun cartridge, helping increase dirt-holding capacity and extend the interval between replacements.
Typical placement
First Filtration Stage
Install before carbon filters, specialty media or an RO membrane to help protect downstream components from grit and sediment loading.
Key benefits
More surface area, higher dirt capacity and reusable construction
Pleated media
Accordion-folded polypropylene creates more filtration surface than a standard spun cartridge.
5-micron nominal rating
Captures fine suspended particles while supporting practical flow in compatible systems.
Higher dirt-holding capacity
Designed to hold more sediment before flow begins to decline.
Rinse and reuse
May be rinsed and reinstalled a few times before final replacement.
Well-water friendly
A practical choice for moderate-to-heavy sediment loads commonly found in well-water systems.
Drop-in replacement
Fits compatible standard 10″ × 2.5″ slim housings.
Reduction guide
What this cartridge helps capture
Helps capture
Dirt
Sand
Silt
Visible rust particles
Suspended scale particles
Particle-related cloudiness
Sand
Silt
Visible rust particles
Suspended scale particles
Particle-related cloudiness
Actual service life depends on sediment load, water use, pressure, flow rate and cleaning frequency.
Does not reduce without additional treatment
Chlorine
Taste and odor
Hardness minerals
Dissolved iron
Hydrogen sulfide
Fluoride
Bacteria or unsafe water
Dissolved salts / TDS
Taste and odor
Hardness minerals
Dissolved iron
Hydrogen sulfide
Fluoride
Bacteria or unsafe water
Dissolved salts / TDS
Use carbon, specialty media, softening, disinfection or reverse osmosis when those treatment goals are required.
Specifications
Filter size, operating range and service guidance
| Product type | Multi-use pleated polypropylene sediment cartridge |
|---|---|
| Primary purpose | High-capacity suspended-particle prefiltration |
| Nominal rating | 5 micron |
| Nominal size | 10″ × 2.5″ standard slim |
| Actual size | Approximately 9 7/8″ × 2.5″ |
| Housing compatibility | Compatible standard 10″ × 2.5″ slim housings |
| Recommended position | Stage 1 prefilter |
| Listed flow rate | Up to 8 GPM |
| Operating temperature | 36–100°F; cold water only |
| Cartridge-level maximum pressure | Up to 100 PSI; follow the lower pressure rating of the installed housing or system |
| Typical service life | Approximately 3–12 months; varies with sediment load, water quality and cleaning frequency |
| Media | Pleated polypropylene |
| SKU | SED5-PLT |
| Listed shipping dimensions | 10 × 3 × 3 in |
| Listed shipping weight | Approximately 0.4 lb |
Cleaning and replacement
- ✓Shut off the water supply and relieve housing pressure before opening
- ✓Remove the cartridge and rinse from the clean side toward the dirty side
- ✓Use clean water only; do not use harsh chemicals or abrasive tools
- ✓Reinstall only if the media remains intact and flow improves after cleaning
- ✓Replace when flow remains low, the pleats are damaged, or cleaning no longer restores performance
- ✓Pressurize slowly and inspect the housing for leaks after service
Which sediment cartridge should you choose?
Pleated versus standard spun sediment
Best suited for municipal water or light-to-moderate sediment when the lowest replacement cost is the priority.
Better suited for well water, heavier sediment, longer service intervals and applications where rinsing and reuse are helpful.
Build your filtration stack
Common compatible configurations
STD
Standard Sediment Alternative
Choose the spun 5-micron cartridge for lighter sediment and lower replacement cost.
KDF
Well-Water Specialty Stage
Pair with CATKDF85-10 when light-to-moderate iron, sulfur odor, chloramine or selected heavy metals are concerns.
GAC
Budget Carbon Stage
Pair with GAC-10 for standard chlorine-related taste and odor treatment.
CTO
Final Carbon Polishing
Finish with a CTO or premium coconut carbon block for additional taste-and-odor polishing.
Before purchase
Good to know
!
Confirm cartridge size
This cartridge fits standard 10″ × 2.5″ slim housings and does not fit 10″ × 4.5″ Big Blue housings.
This cartridge fits standard 10″ × 2.5″ slim housings and does not fit 10″ × 4.5″ Big Blue housings.
!
Reusable does not mean permanent
Cleaning may restore flow a few times, but filtration performance declines over repeated cycles.
Cleaning may restore flow a few times, but filtration performance declines over repeated cycles.
!
Always install first
Sediment filtration should be placed before carbon, specialty media and RO membranes.
Sediment filtration should be placed before carbon, specialty media and RO membranes.
!
Heavy sediment shortens service life
Replace sooner if the cartridge becomes heavily loaded or household pressure declines.
Replace sooner if the cartridge becomes heavily loaded or household pressure declines.
!
This is not a chemical filter
It does not reduce chlorine, taste, odor, dissolved iron, hardness or TDS.
It does not reduce chlorine, taste, odor, dissolved iron, hardness or TDS.
!
Inspect after each cleaning
Do not reinstall the cartridge if the pleats, end caps or seals are damaged.
Do not reinstall the cartridge if the pleats, end caps or seals are damaged.
This product includes one replacement cartridge only. Filter housing, wrench, mounting hardware, plumbing fittings and additional filters are not included. It is not intended to make microbiologically unsafe or unknown-quality water safe to drink.
Not sure whether the pleated or spun sediment filter is better for your water?
Send your water source, current filter photos and information about the amount of visible sediment.
Send your water source, current filter photos and information about the amount of visible sediment.
Additional information
| Weight | 10 oz |
|---|---|
| Dimensions | 10 × 3 × 3 in |
