Stage 01
5-Micron Sediment
Helps capture dirt, sand, silt, visible rust particles and other suspended debris while protecting the carbon stage downstream.

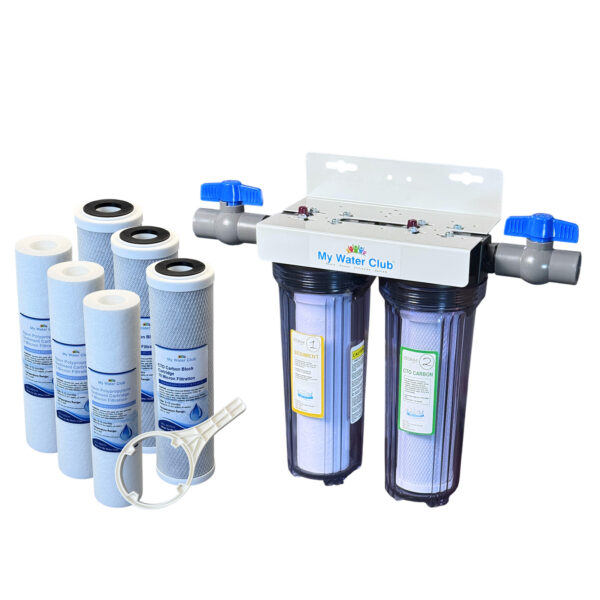

2-Stage Whole House Water Filtration System, 3/4″ Ports, 2 Shutoff Valves + 4 Filter Sets, SKU: WHSDUAL-1Y
$99.00
Dual Stage Whole House Water Purification System with Sediment and CTO Carbon Block Filters, with 3/4″ port, SKU# WHSDUAL-1Y
- Description
- Additional information
- Reviews (0)
Description
Whole-home sediment and carbon filtration
Dual-stage filtration with semi-clear housings, two shutoff valves and four complete filter sets
This point-of-entry system installs on the home’s main cold-water line and filters water before it reaches connected faucets, showers and appliances. Two standard 10″ × 2.5″ cartridges are preinstalled, and three additional complete replacement sets are enclosed for future maintenance.
2 stagesSediment + CTO carbon
3/4″ NPTInlet and outlet
10″ × 2.5″Standard slim cartridges
4 sets total1 installed + 3 spare
What it does
Two filtration stages support practical whole-house water treatment
Water passes through a sediment prefilter first, followed by a high-dirt-capacity CTO carbon-block stage for chlorine-related taste and odor.
Installed where the main water supply enters the home, the system helps capture suspended particles and improve chlorine-related water quality before water is distributed through the plumbing.
Stage 02
5-Micron CTO Carbon Block
Helps reduce chlorine, unpleasant taste and odor, and many common organic compounds while providing final water polishing.
Key benefits
Whole-home coverage with practical installation accessories and long-term filter value
Point-of-entry filtration
Filters water for connected faucets, showers, laundry and appliances from one central location.
Two-stage treatment
Sediment filtration protects the downstream CTO carbon block and supports consistent household use.
Four complete filter sets
One set is preinstalled and three complete spare sets are included—eight cartridges total.
Two shutoff valves included
Included on/off valves help isolate the system during installation and routine filter replacement.
Two connection nipples
Two 3/4″ nipples are included to support connection of the supplied valves to the filter assembly.
Housing wrench included
The supplied wrench helps open the housings during routine cartridge replacement.
Reduction guide
What the included filters help reduce—and what requires other treatment
The standard sediment and CTO carbon-block combination is intended for suspended particles and chlorine-related concerns. Other water conditions may require specialty media, softening, disinfection or reverse osmosis.
Helps reduce with the included filter set
Sediment
Dirt and silt
Sand
Visible rust particles
Suspended debris
Chlorine
Unpleasant taste
Unpleasant odor
Many common VOCs
Particle-related cloudiness
Dirt and silt
Sand
Visible rust particles
Suspended debris
Chlorine
Unpleasant taste
Unpleasant odor
Many common VOCs
Particle-related cloudiness
Actual reduction and cartridge life depend on source-water chemistry, pressure, flow rate, household use and filter condition.
Not designed to remove without specialty treatment
Hardness minerals
Dissolved scale
Dissolved iron
Fluoride
Chloramine
Bacteria or unsafe water
Dissolved salts / TDS
Dissolved scale
Dissolved iron
Fluoride
Chloramine
Bacteria or unsafe water
Dissolved salts / TDS
Chloramine generally requires catalytic carbon; hardness usually requires a water softener; microbiological concerns require appropriate disinfection; dissolved contaminants may require specialty media or reverse osmosis.
Product details
Specifications and package contents
| Application | Point-of-entry whole-house cold-water filtration |
|---|---|
| Number of stages | 2: sediment + CTO carbon block |
| Inlet / outlet | 3/4″ threaded ports |
| Cartridge size | Standard 10″ × 2.5″ slim cartridges |
| Stage 1 | 5-micron sediment cartridge |
| Stage 2 | 5-micron high-dirt-capacity CTO carbon block |
| Housing style | Semi-clear slim housings on a dual metal bracket |
| Working pressure | 20–80 PSI |
| Water temperature | 40–100°F; cold water only |
| Listed flow range | 1–10 GPM, depending on water pressure, filter condition and plumbing |
| Typical filter replacement | Approximately every 3–6 months; sooner with heavy sediment, high use, pressure loss, or returning taste and odor |
| Listed shipping dimensions | 16 × 12 × 8 in |
| Listed shipping weight | Approximately 192 oz / 12 lb |
| Assembly | Designed and assembled in the USA from domestic and imported components |
| SKU | WHSDUAL-1Y |

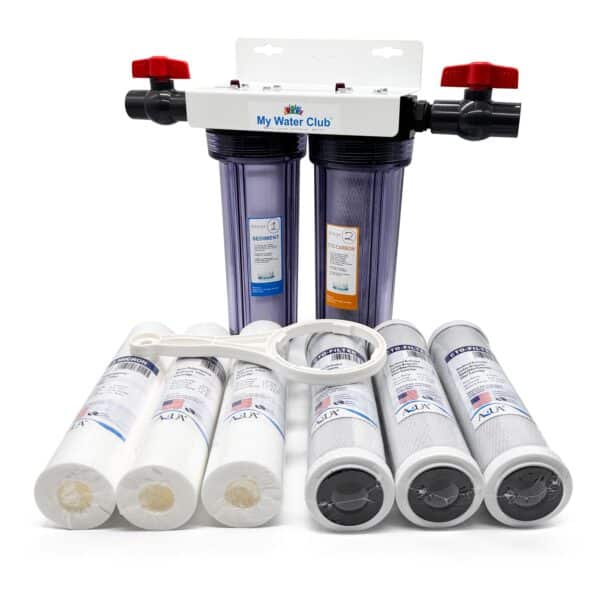

What is included inside the package
- ✓Dual-stage whole-house filtration system with two semi-clear housings and metal mounting bracket
- ✓One preinstalled filter set: 5-micron sediment + 5-micron CTO carbon block
- ✓Three complete spare filter sets—6 additional cartridges
- ✓Eight cartridges total: 2 installed + 6 spare
- ✓Two 3/4″ on/off shutoff valves
- ✓Two 3/4″ connection nipples
- ✓Filter housing wrench
Installation and filter-change manual
Review installation, flushing, cartridge replacement and leak-check instructions before use.
Download Manual (PDF)
Review installation, flushing, cartridge replacement and leak-check instructions before use.
Download Manual (PDF)
Maintenance and compatibility
Compatible replacement filters and service parts
Use compatible standard 10″ × 2.5″ slim cartridges and service parts intended for MyAquaFilter 3/4″ whole-house housings.
2F
Premium Dual-Stage Replacement Set
One 5-micron sediment cartridge and one premium activated carbon block for a complete filter-change cycle.
H
Clear 3/4″ Replacement Housing
Replacement housing for compatible standard 10″ × 2.5″ cartridges and 3/4″ dual- or triple-stage systems.
O
GASKET34 Replacement O-Ring
Replacement gasket for compatible clear or blue 3/4″ slim whole-house filter housings.
V
3/4″ FNPT Shutoff Valve
Replacement PVC ball valve for compatible 3/4″ threaded whole-house filtration installations.
Before purchase and installation
Good to know
!
This is not a water softener
Sediment and carbon filters do not remove dissolved hardness minerals or prevent all mineral scale.
Sediment and carbon filters do not remove dissolved hardness minerals or prevent all mineral scale.
!
Check whether your city uses chloramine
The included standard CTO carbon block is intended primarily for chlorine. Chloramine generally requires catalytic carbon.
The included standard CTO carbon block is intended primarily for chlorine. Chloramine generally requires catalytic carbon.
!
Confirm 3/4″ plumbing compatibility
Adapters or reducers may be required when the home’s main line uses a different connection size.
Adapters or reducers may be required when the home’s main line uses a different connection size.
!
Professional installation is recommended
Use a licensed plumber and follow local plumbing and building codes. Confirm flow direction before connecting the system.
Use a licensed plumber and follow local plumbing and building codes. Confirm flow direction before connecting the system.
!
Protect the housings and leave service clearance
Install away from freezing conditions and direct sunlight, with enough clearance below the housings for cartridge replacement.
Install away from freezing conditions and direct sunlight, with enough clearance below the housings for cartridge replacement.
!
Flush and inspect after installation or service
Flush the new carbon filter, pressurize the system slowly, and inspect all housings, fittings and valves for leaks immediately and again during the next 12 hours.
Flush the new carbon filter, pressurize the system slowly, and inspect all housings, fittings and valves for leaks immediately and again during the next 12 hours.
Filter life and reduction performance vary with water chemistry, sediment load, pressure, flow rate and household usage. This system is not intended to make microbiologically unsafe or unknown-quality water safe to drink. Test private-well or unknown water and select treatment based on the results.
Not sure whether this filter combination matches your water?
Send your ZIP code, water source—municipal or well—and any recent water-test results.
Send your ZIP code, water source—municipal or well—and any recent water-test results.
Additional information
| Weight | 192 oz |
|---|---|
| Dimensions | 16 × 12 × 8 in |
| Port size | 3/4" |
| Housing type | Semiclear |
Be the first to review “2-Stage Whole House Water Filtration System, 3/4″ Ports, 2 Shutoff Valves + 4 Filter Sets, SKU: WHSDUAL-1Y”
Related Products

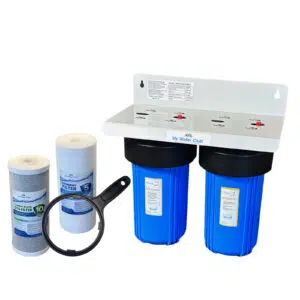

Dual Stage 10" x 4.5" Whole House Water Filtration System – 1" NPT, Pressure Release, Brass Inserts – Includes Sediment & CTO Carbon Block + Extra Filter Set, SKU# WHS-2SC-10BB-E
