Primary purpose
Limits Excessive Pressure
Helps protect downstream components when municipal supply pressure or temporary pressure surges exceed the preferred operating range of the filtration system.

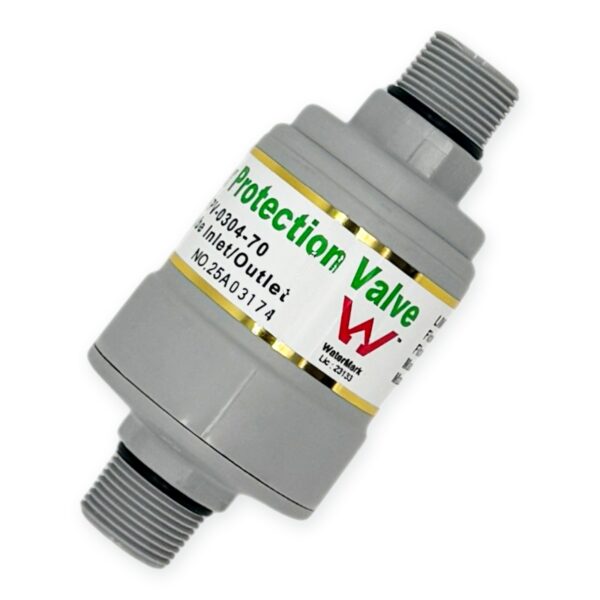

70 PSI Pressure-Limiting Valve for Whole House Water Filters — 3/4″ MNPT with 1″ Adapters — WaterMark Certified, SKU: LV-FPV-0304-70
$35.90
- Description
- Additional information
- Reviews (0)
Description
Fixed whole-house pressure protection
70 PSI pressure-limiting valve for compatible 3/4″ and 1″ cold-water lines
This passive inline valve helps protect whole-house filter housings, reverse-osmosis components, fittings, O-rings and plumbing fixtures from excessive incoming water pressure. It limits downstream pressure to approximately 70 PSI and includes two adapters for use with compatible 1″ plumbing.
70 PSIFixed downstream pressure limit
3/4″ MNPTNative connections on both ends
1″ adaptersTwo adapter bushings included
Cold waterMaximum 104°F / 40°C
What it does
Helps prevent overpressure damage downstream
When incoming pressure rises above the valve’s fixed limit, the internal mechanism restricts flow to help maintain downstream pressure near 70 PSI. This can reduce stress on filter housings, threaded connections, quick-connect fittings, membranes, gaskets and household fixtures.
Installation position
Before the Filtration System
Install downstream of the main shutoff valve and upstream of the first filter housing so the complete system receives pressure-limited water.
What is included
Valve and adapters for two common line sizes
- ✓One fixed 70 PSI pressure-limiting valve
- ✓3/4″ male NPT connection on both valve ends
- ✓Two 3/4″-to-1″ adapter bushings for compatible 1″ plumbing
- ✓One complete valve assembly; PTFE tape and plumbing-specific transition fittings are not included
Key benefits
Passive protection with no adjustment or electrical connection
Fixed 70 PSI Limit
Helps maintain downstream pressure near 70 PSI when incoming pressure exceeds that level.
Protects Filter Housings
Helps reduce stress on slim and Big Blue housings, caps, ports and mounting connections.
Protects RO Components
Helps protect membranes, tubing, quick-connect fittings and other pressure-sensitive components.
Fits 3/4″ Lines Directly
The valve has 3/4″ male NPT connections on both ends.
1″ Adapters Included
Two included bushings adapt the valve for compatible 1″ threaded plumbing.
No Adjustment or Maintenance
The passive mechanical design requires no electricity, setting changes or routine servicing.
When it may be useful
Common signs that pressure protection may be needed
PSI
Supply Pressure Above 70 PSI
Useful when static municipal pressure is higher than the preferred operating range of the installed filtration equipment.
SUR
Pressure Surges
May help reduce downstream exposure to supply surges, thermal expansion and some transient pressure increases.
OR
Repeated O-Ring or Leak Problems
Premature gasket failure, housing leaks or fitting problems may be associated with excessive pressure.
NEW
New Whole-House Installation
Can be installed upstream as preventive protection for single-, dual- or triple-stage filter systems.
Specifications
Pressure, connections and flow data
| Product type | Fixed inline pressure-limiting valve |
|---|---|
| Pressure limit | Approximately 70 PSI / 500 kPa |
| Adjustment | Fixed; not user-adjustable |
| Native connections | 3/4″ MNPT on both ends |
| Included adapters | 2 × 3/4″-to-1″ threaded adapter bushings |
| Compatible line sizes | 3/4″ directly; compatible 1″ threaded plumbing with included adapters |
| Listed flow performance | Approximately 10 GPM at 7 PSI pressure drop; 13.7 GPM at 14.2 PSI pressure drop |
| Maximum incoming pressure | 230 PSI / 1600 kPa |
| Maximum temperature | 104°F / 40°C; cold water only |
| Certification | WaterMark, license 23133 |
| Manufacturer | Clean Pure, Taiwan |
| Model / SKU | LV-FPV-0304-70 |
| Listed shipping dimensions | 7 × 3 × 3 in |
| Listed shipping weight | Approximately 0.8 lb |
Installation overview
- ✓Shut off the water supply and relieve line pressure
- ✓Install between the main shutoff valve and the first filter housing
- ✓Observe any flow-direction marking on the valve body
- ✓Use suitable PTFE tape or approved thread sealant on NPT connections
- ✓Support the plumbing so the valve does not carry pipe weight
- ✓Restore pressure slowly and inspect every connection for leaks
Important distinction
Pressure limiter versus adjustable regulator
Provides a fixed pressure ceiling near 70 PSI. It has no adjustment screw, gauge or user-selected outlet setting.
Allows the installer to select a lower or different downstream pressure and is better when a precise custom setting is required.
Before purchase
Good to know
!
It does not increase pressure
The valve only limits pressure above its fixed setting; it cannot boost weak incoming pressure.
The valve only limits pressure above its fixed setting; it cannot boost weak incoming pressure.
!
It is not adjustable
The outlet limit cannot be changed to 50, 60, 75 or another custom PSI setting.
The outlet limit cannot be changed to 50, 60, 75 or another custom PSI setting.
!
Cold water only
Do not install where water temperature can exceed 104°F / 40°C.
Do not install where water temperature can exceed 104°F / 40°C.
!
Flow creates pressure drop
Higher water demand increases pressure loss across the valve; confirm the listed flow data suits the application.
Higher water demand increases pressure loss across the valve; confirm the listed flow data suits the application.
!
Adapters do not guarantee a complete installation
Additional unions, couplings, valves or transitions may be required depending on existing pipe material and thread configuration.
Additional unions, couplings, valves or transitions may be required depending on existing pipe material and thread configuration.
!
Professional installation may be appropriate
Local plumbing codes, backflow rules, thermal expansion and pipe support should be considered.
Local plumbing codes, backflow rules, thermal expansion and pipe support should be considered.
This product includes one fixed pressure-limiting valve and two size adapters. PTFE tape, unions, shutoff valves, gauges and plumbing transition fittings are not included. Verify connection type, flow requirements, local code and the pressure rating of every downstream component before installation.
Not sure whether this valve fits your plumbing?
Send photos of the existing line, pipe size, connection type, measured static pressure and filtration-system model.
Send photos of the existing line, pipe size, connection type, measured static pressure and filtration-system model.
Additional information
| Weight | 10 oz |
|---|---|
| Dimensions | 5 × 2 × 2 in |
