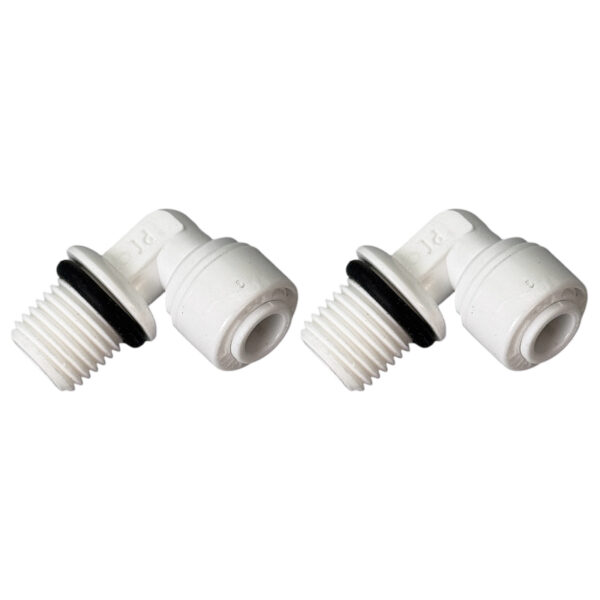

1/4″ MNPT × 1/4″ OD Quick-Connect 90° Elbow Fittings — O-Ring Seal, 2-Pack — SKU FT-EL-14-QC14-R
$2.50
1/4″ OD tubing x 1/4″ thread Elbow Quick Connect QC fitting, qty 2
- Description
- Additional information
- Reviews (0)
Description
90° RO quick-connect fitting
Connect a 1/4″ MNPT port to standard 1/4″ OD tubing in a compact right-angle layout
This 90° elbow fitting combines a 1/4″ male NPT threaded connection with a 1/4″ OD push-to-connect tubing port. The integrated O-ring seals the threaded side, so PTFE tape is not required for this fitting.
1/4″ MNPTMale threaded side
1/4″ OD QCPush-to-connect tubing
90° elbowSpace-saving routing
2-PackSKU FT-EL-14-QC14-R
Applications
For RO systems, inline filters, and compatible water-filter components
Compact RoutingTurns tubing immediately at the component to help avoid sharp tubing bends.
Push-to-ConnectAccepts standard 1/4″ OD tubing without a compression nut.
Integrated O-RingThreaded side is designed to seal without PTFE tape.
Water Filter UseSuitable for compatible countertop RO, under-sink RO, and inline filtration setups.
Specifications
Product details
| Connection | 1/4″ MNPT × 1/4″ OD quick connect |
|---|---|
| Angle | 90° elbow |
| Thread seal | Integrated O-ring; no PTFE tape required |
| Tube side | Push-to-connect |
| Use | Cold water |
| Quantity | 2 fittings |
| Listed shipping dimensions | 2 × 2 × 1 in |
| Listed shipping weight | 2 oz |
| SKU | FT-EL-14-QC14-R |
Installation
- ✓Hand-tighten the threaded connection; do not overtighten
- ✓Cut 1/4″ OD tubing square and push it fully into the collet
- ✓To release tubing, depress the collet evenly and pull the tube straight out
Verify the component uses a 1/4″ MNPT port. This fitting is not interchangeable with 1/8″ MNPT versions.
Additional information
| Weight | 2 oz |
|---|---|
| Dimensions | 2 × 2 × 1 in |
