Filter Service
Isolate water flow before replacing or servicing compatible inline filtration components.
1/4″ Thread × 1/4″ OD Quick-Connect Straight Ball Valve — Quarter-Turn RO Shut-Off — SKU BV-14-QC14
$2.99
Universal Reverse Osmosis RO Straight Ball Valve, 1/4″ tubing x 1/4″ thread
- Description
- Additional information
- Reviews (0)
Description
RO tubing & shut-off accessory
Manually isolate water flow between a 1/4″ threaded port and standard 1/4″ OD RO tubing

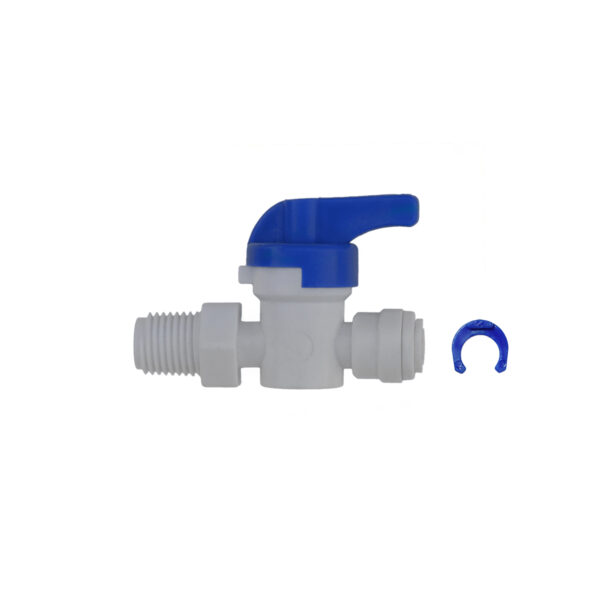

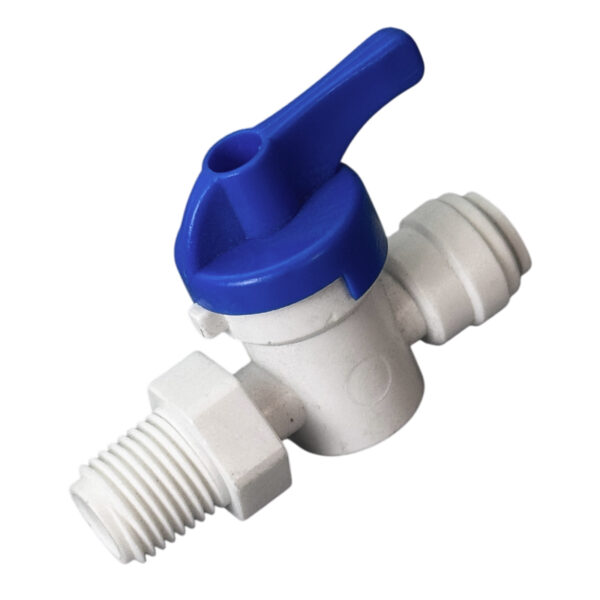

This straight ball valve provides simple quarter-turn on/off control for compatible reverse-osmosis and water-filtration systems. One side connects to a compatible 1/4″ threaded component and the other accepts standard 1/4″ OD tubing through a push-to-connect port.
1/4″ threadComponent side
1/4″ OD QCTubing side
Quarter-turnManual shut-off
SKU BV-14-QC14MyAquaFilter SKU
Key benefits
Compact manual flow control for RO service and maintenance
Quarter-Turn ControlQuickly open or close the water line for service or filter replacement.
Standard RO TubingPush-to-connect port accepts compatible 1/4″ OD tubing.
Threaded Component SideConnects to a compatible 1/4″ threaded filtration component.
RO ApplicationsUseful with compatible RO systems, inline filters, and water-filtration tubing layouts.
Specifications
Product details
| Product type | Straight manual ball valve |
|---|---|
| Connection | 1/4″ OD quick-connect × 1/4″ thread |
| Tubing size | 1/4″ OD |
| Operation | Quarter-turn handle |
| Configuration | Straight |
| Thread sealing | PTFE thread-seal tape required on the threaded side |
| Quantity | 1 valve |
| Applications | RO systems, inline water filters, filtration tubing |
| Listed shipping dimensions | 6 × 4 × 1 in |
| Listed shipping weight | 2 oz |
| SKU | BV-14-QC14 |
Installation
- ✓Shut off water and depressurize the filtration system before service
- ✓Apply PTFE tape only to the compatible threaded connection
- ✓Cut 1/4″ OD tubing square and push it fully into the quick-connect port
- ✓Restore water gradually and inspect the connection for leakage
Common uses
Add a convenient service shut-off point to a compatible RO water line
2
RO Maintenance
Add manual shut-off control near a membrane housing, filter, or other compatible threaded component.
3
Compact Routing
Straight configuration works well where the tubing continues in line with the threaded port.
Good to know
Confirm the threaded port before installation
!
Thread specificationThe current product page identifies the component connection only as a 1/4″ thread and does not clearly state the exact thread standard or gender.
!
PTFE tape placementUse thread-seal tape only on the threaded side. Do not wrap the push-to-connect tubing port.
Not sure this valve fits?Send a clear photo of the existing threaded port and tubing size.
Additional information
| Weight | 2 oz |
|---|---|
| Dimensions | 6 × 4 × 1 in |
