Description

Replacement or upgrade tank for under-sink RO

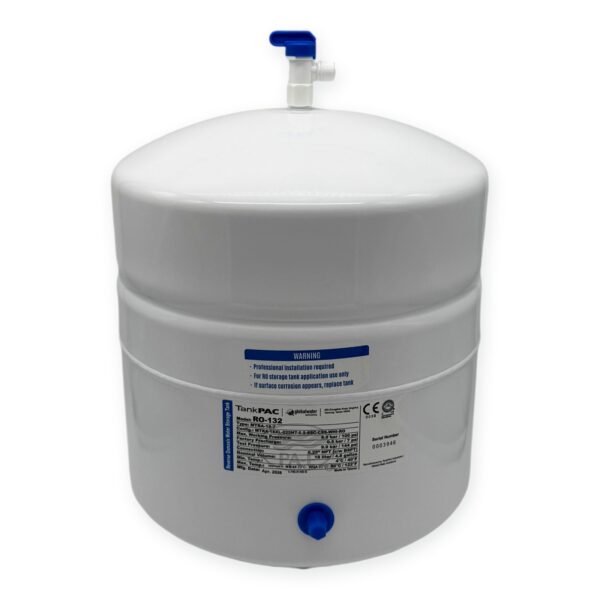

PAE RO-132 18-liter RO water storage tank with stand and free shut-off valve

A full-size pressurized storage tank for reverse osmosis systems. PAE’s 18-liter (4.8-gallon) steel tank keeps about 3.5 gallons of RO water ready at the faucet, held behind a food-grade butyl bladder and pushed out by the factory air charge. It comes with a matching stand and a free 1/4″ tank ball valve, and connects with the standard 1/4″ NPT port used by most under-sink RO systems. Many stores list the same RO-132 as a “4.5 gallon” tank.

4.8 gal / 18 LNominal tank volume
~3.5 galUsable RO water
1/4″ NPTTank port (male thread)
NSF/ANSI 58Certified tank component
3.5G

More Water ReadyAbout 3.5 gallons on hand for drinking, cooking and an ice maker.

NSF

Certified ComponentListed to NSF/ANSI 58 as an RO storage tank (TankPAC / Global Water Solutions).

KIT

Stand + Free ValveTank stand and 1/4″ ball valve included, ready to install.

STEEL

Tested to 144 PSIPowder-coated steel, rated for 100 PSI working pressure.

Specifications

Product details

Model PAE TankPAC RO-132 (type MTRA-18-7)
Brand / manufacturer PA-E® / TankPAC Industries – Global Water Solutions, made in Taiwan
Nominal volume 18 liters / 4.8 gallons
Usable water About 3.5 gallons; varies with line pressure and air precharge
Tank connection 1/4″ NPT, male thread (top port)
Included valve 1/4″ ball valve, 1/4″ FPT × 1/4″ tube quick-connect
Includes Tank + stand + free ball valve
Construction Steel shell, white powder coat, food-grade butyl bladder
Factory air precharge 7 PSI (0.5 bar)
Working / test pressure 100 PSI (6.9 bar) / 144 PSI (9.9 bar)
Water temperature 40–122°F (4–50°C), per tank label
Approx. size 15″ tall × 10″ wide (including valve)
Certification NSF/ANSI 58 (storage tank component), CE
Color White
SKU RO-TANK-132
Nominal volume is the tank’s total size. Usable water is lower because the air side of the bladder takes up part of the tank, and it depends on your feed pressure, air precharge and the RO system’s shut-off pressure. Check the air precharge (about 7 PSI with the tank empty) at the Schrader valve under the blue cap before installing, and wrap the tank port with PTFE tape before threading on the valve. The tank stores RO water; it does not filter or treat water itself, and the NSF/ANSI 58 certification covers the tank as a component, not a complete RO system. For RO storage only. The manufacturer recommends professional installation.

Additional information

Weight 144 oz
Dimensions 14 × 12 × 12 in
