1
Verify the Connection
Compare the existing tubing, stem, or threaded port with the specifications above.

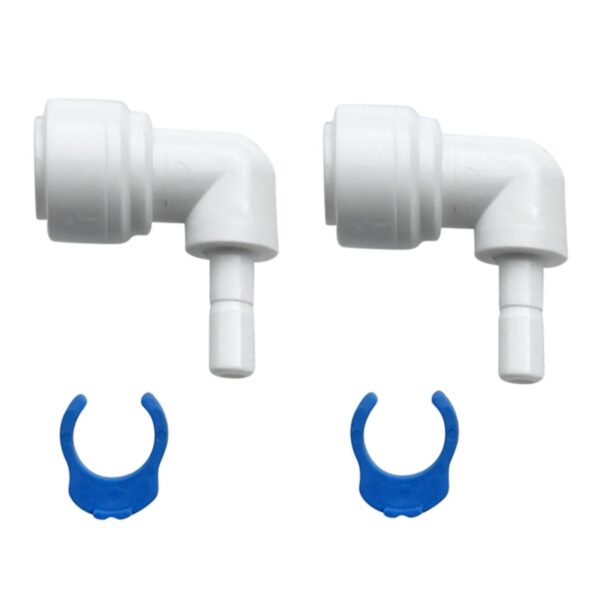

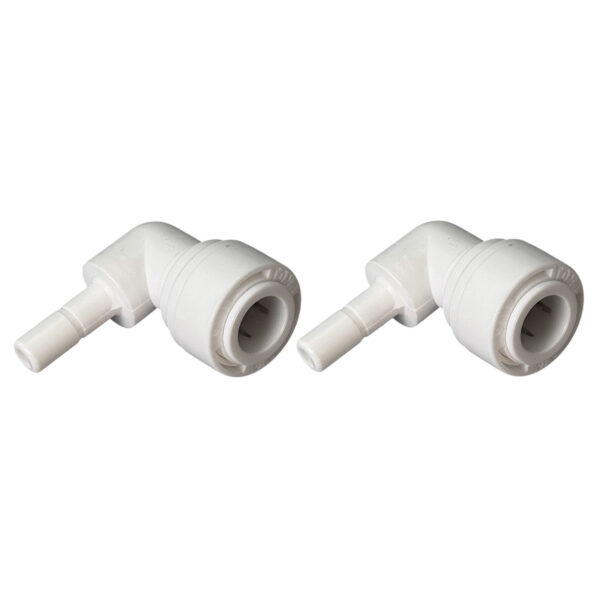

1/4″ Stem × 3/8″ OD Quick-Connect 90° Elbow Fittings — 2-Pack — SKU FT-EL-STEM14-QC38
$1.99
- Description
- Additional information
- Reviews (0)
Description
RO tubing & fitting accessory
Connect a compatible 1/4″ quick-connect port to 3/8″ OD tubing at a 90° angle
These cross-size elbow connectors use a 1/4″ stem that pushes into a compatible 1/4″ quick-connect port and a 3/8″ OD push-to-connect outlet for tubing. They are useful when adapting inline filters, membrane housings, or other filtration components to a larger 3/8″ tubing run.

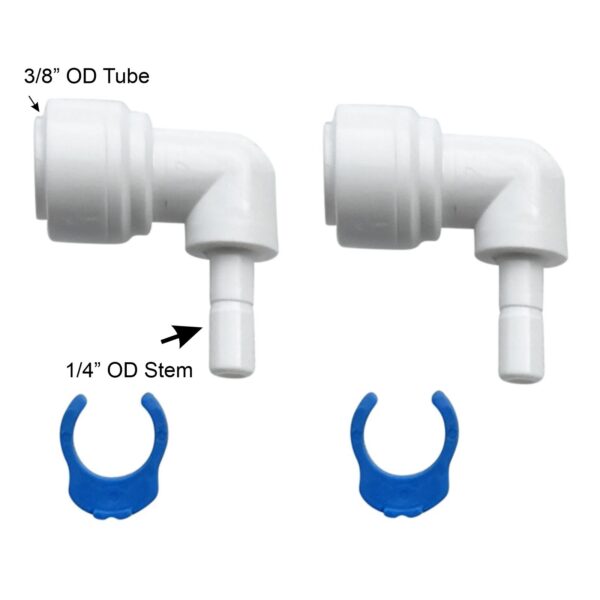

1/4″ stemPush-in component side
3/8″ OD QCTubing side
90° elbowCompact routing
2-PackMatching source SKU
Key benefits
Compact connection hardware for clean, serviceable filtration layouts
1/4″ StemPushes into a compatible 1/4″ collet-style port.
Larger TubingAccepts standard 3/8″ OD tubing.
Right-Angle RoutingHelps avoid tight tubing bends.
No ThreadsNo PTFE tape or thread sealant required.
Specifications
Product details
| Product type | Stem-to-tube quick-connect elbow |
|---|---|
| Connection | 1/4″ stem × 3/8″ OD quick-connect |
| Shape | 90° elbow |
| Seal | Push-fit; no PTFE tape or sealant |
| Quantity | 2 fittings |
| Application | Inline filters, RO membrane housings, countertop RO |
| MyAquaFilter listed shipping dimensions | 6 × 4 × 1 in |
| MyAquaFilter listed shipping weight | 2 oz |
| Matching MyWaterClub SKU | FT-EL-STEM14-QC38 |
Before installation
- ✓Confirm tubing, stem, and thread sizes before ordering
- ✓Shut off water and depressurize the filtration system before service
- ✓Cut push-connect tubing square and insert it fully
Installation
Use thread seal only where the connection actually requires it
2
Install Fully
Seat push-connect tubing completely. Apply PTFE tape only to compatible threaded connections.
3
Pressure-Test
Restore water gradually and inspect all serviced connections before regular use.
Good to know
Similar-looking fittings may have different functions
!
OD means outside diameter1/4″ and 3/8″ tubing sizes refer to tubing outside diameter.
!
Do not force fittingsIf a fitting does not seat normally, re-check the connection type and size.
Not sure this fitting is correct?Send a clear photo of the existing connection and tubing size.
Additional information
| Weight | 2 oz |
|---|---|
| Dimensions | 6 × 4 × 1 in |
